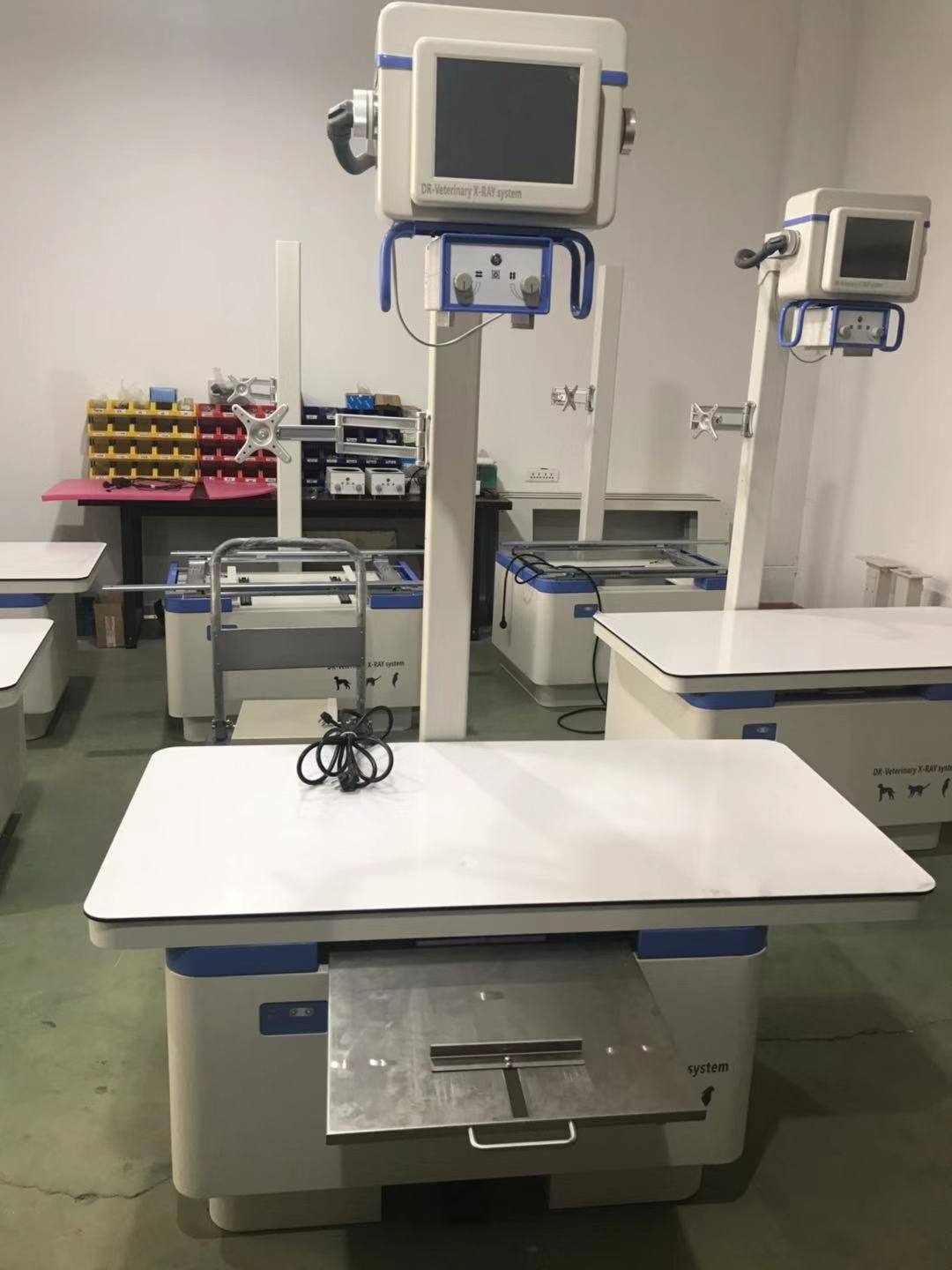

Veterinary Radiography System AVM-10

1.Big power output high frequency high voltage generator meets all types clinical need

2.Whole-radiography Chain Design based on the various body part, provide according different radiography parameters and imaging optimization function

3.10 inch big LCD touch screen, easy exposure parameters setting.

4.Compact design for the table and column fit small xray room.

5.Good auto trouble-testing function for easy maintainence

Xray Generator and Parameter Setting
Output power	5kW
Input power	220 V ± 10% (50 Hz / 60 Hz)
Focus	Dual focus: 0.5/ 1.5mm
Tube Voltage range	40~120 kV
Max tube current	200 mAs
mA Range	32-100 mA
Tube current auto-calibration	Yes
Parameter Set	LCD touch screen by veterinary size&weight&body part (first in China vet medical area)
APR (AUTO parameter) amount	>500 groups
Service	Intelligent Error test
Mechanical Control
SID	110cm
Projection Size	43cm x 43cm
Column Height	1800mm
Table Size	1400 x 700 x820 mm
Touch Screen	10inch
Table control movement	Fiber board surface, electromagnet control, free floating

Xray Generator and Parameter Setting
Output power	5kW
Input power	220 V ± 10% (50 Hz / 60 Hz)
Focus	Dual focus: 0.5/ 1.5mm
Tube Voltage range	40~120 kV
Max tube current	200 mAs
mA Range	32-100 mA
Tube current auto-calibration	Yes
Parameter Set	LCD touch screen by veterinary size&weight&body part (first in China vet medical area)
APR (AUTO parameter) amount	>500 groups
Service	Intelligent Error test
Mechanical Control
SID	110cm
Projection Size	43cm x 43cm
Column Height	1800mm
Table Size	1400 x 700 x820 mm
Touch Screen	10inch
Table control movement	Fiber board surface, electromagnet control, free floating
