1. Diameter of distal- end:中13.0mm
2. Diameter of insert tube:中12.8mm
3. Clamp aperture:中3.8mm
4. Working length: 1350mm
5. Total length: 1650mm
6. View of field: 140 。
7. Depth of view: 3- 100mm
8. Resolution: CMOS 1,000,000 pixels
9. Tip deflection: Up180° down 180° L/R 160°
10.Bending operation : Traction chain structure, whole sealed waterproof
11.Image display : Two image display optional
12.Split machine : Main part and light source are splited
13.Quality certification:ISO
14.Warranty : One year(free), permanent repairs (not free)
15.Package size :64*18* 48cm (G.W:5.18kgs)
1. Diameter of distal- end:中13.0mm
2. Diameter of insert tube:中12.8mm
3. Clamp aperture:中3.8mm
4. Working length: 1350mm
5. Total length: 1650mm
6. View of field: 140 。
7. Depth of view: 3- 100mm
8. Resolution: CMOS 1,000,000 pixels
9. Tip deflection: Up180° down 180° L/R 160°
10.Bending operation : Traction chain structure, whole sealed waterproof
11.Image display : Two image display optional
12.Split machine : Main part and light source are splited
13.Quality certification:ISO
14.Warranty : One year(free), permanent repairs (not free)
15.Package size :64*18* 48cm (G.W:5.18kgs)

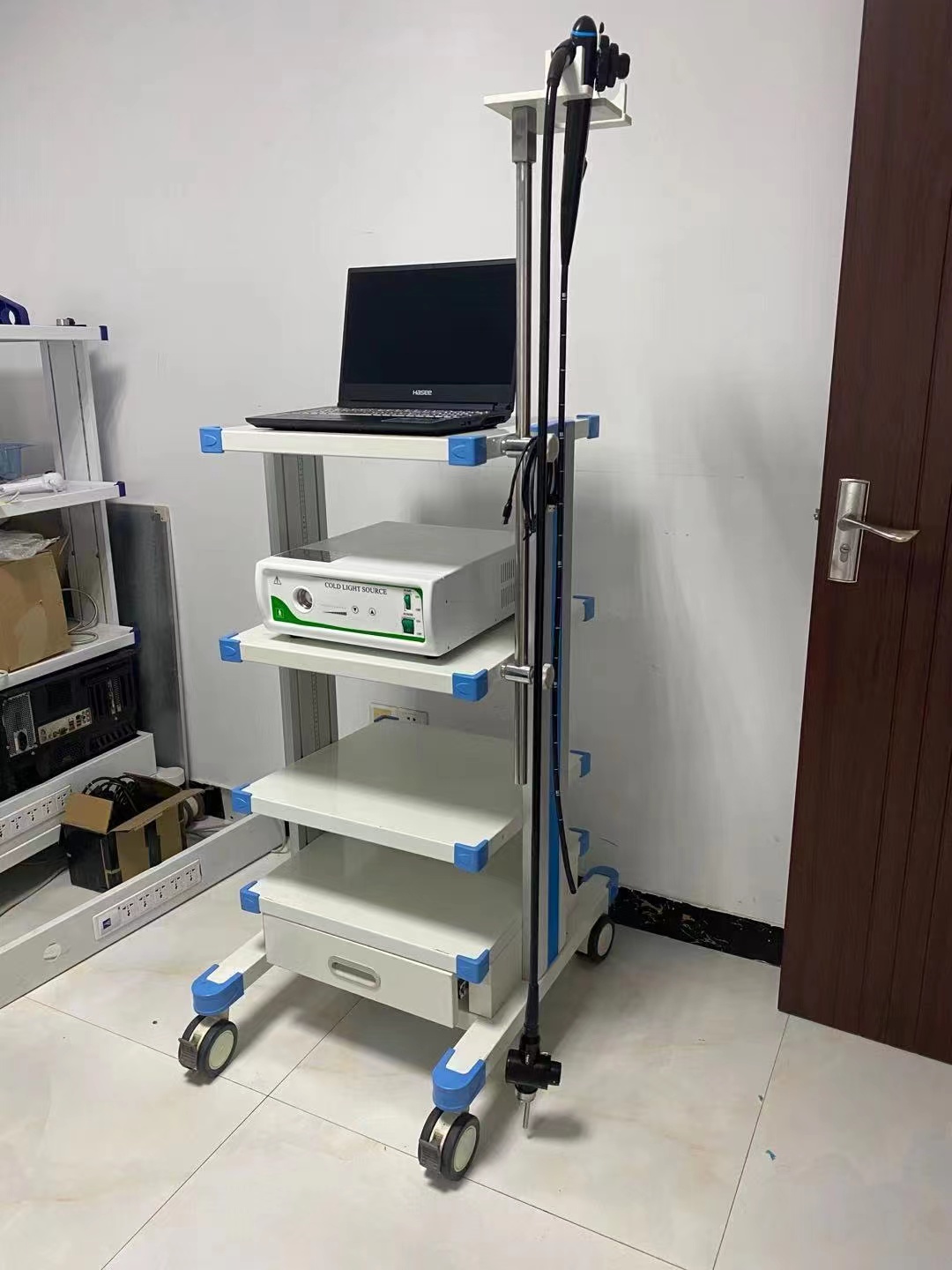

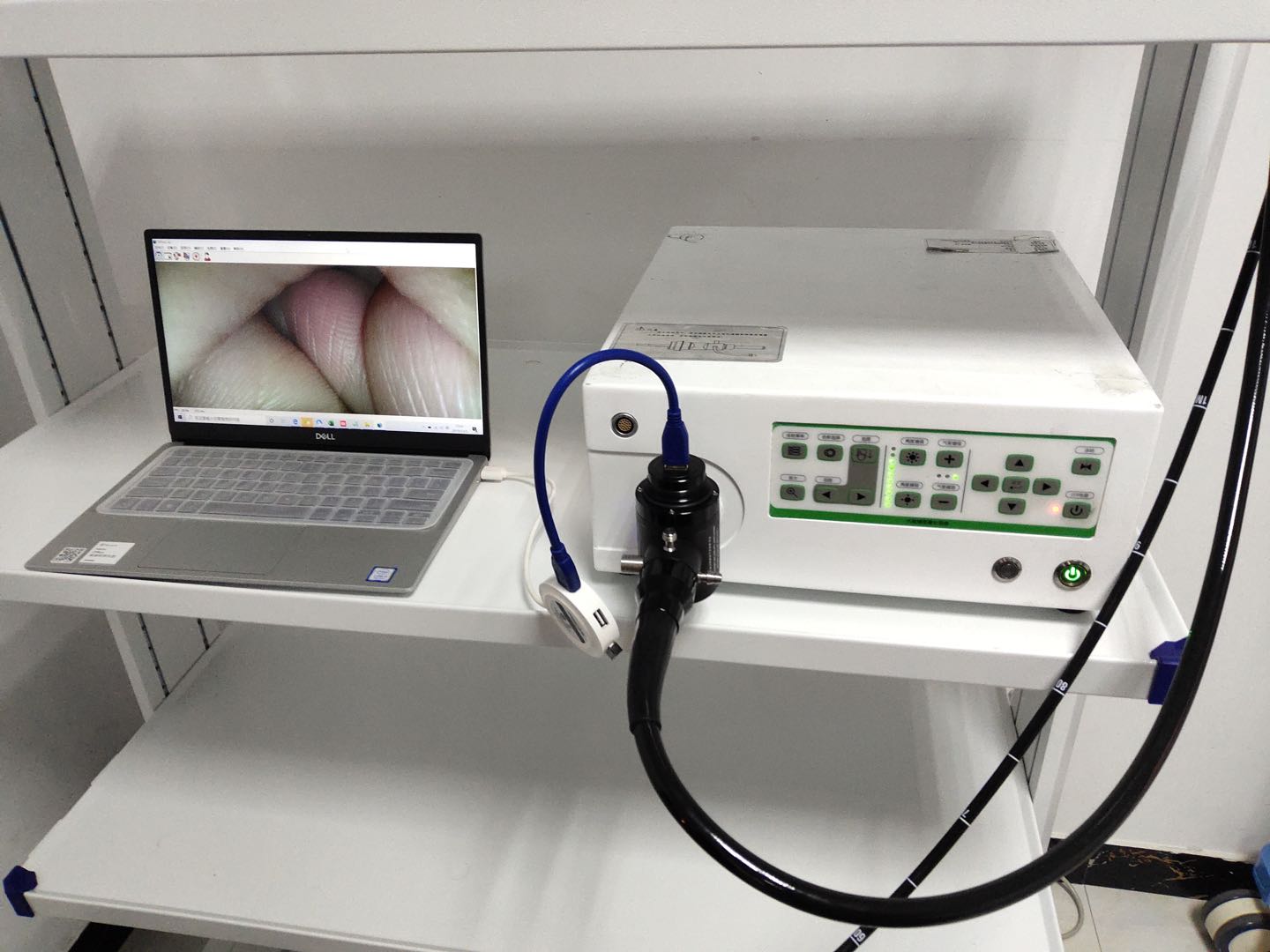

1.Laptop computer (HUAWEI MateBook D 14 SE )
2.Light cold source machine
Voltage: 220V-240V
Frequency: 50-60HZ
lamp Power:15V- 150W environmentally friendly halogen tungsten lamp
llumination: 70000LX (using special measuring tools)
Color Temperature: 3000~7000K
Air Pump Pressure: 30-60kpa
Air Flow: 4/L/min-10L/min (Quiet pump)
3.Trolley
1.Laptop computer (HUAWEI MateBook D 14 SE )
2.Light cold source machine
Voltage: 220V-240V
Frequency: 50-60HZ
lamp Power:15V- 150W environmentally friendly halogen tungsten lamp
llumination: 70000LX (using special measuring tools)
Color Temperature: 3000~7000K
Air Pump Pressure: 30-60kpa
Air Flow: 4/L/min-10L/min (Quiet pump)
3.Trolley
