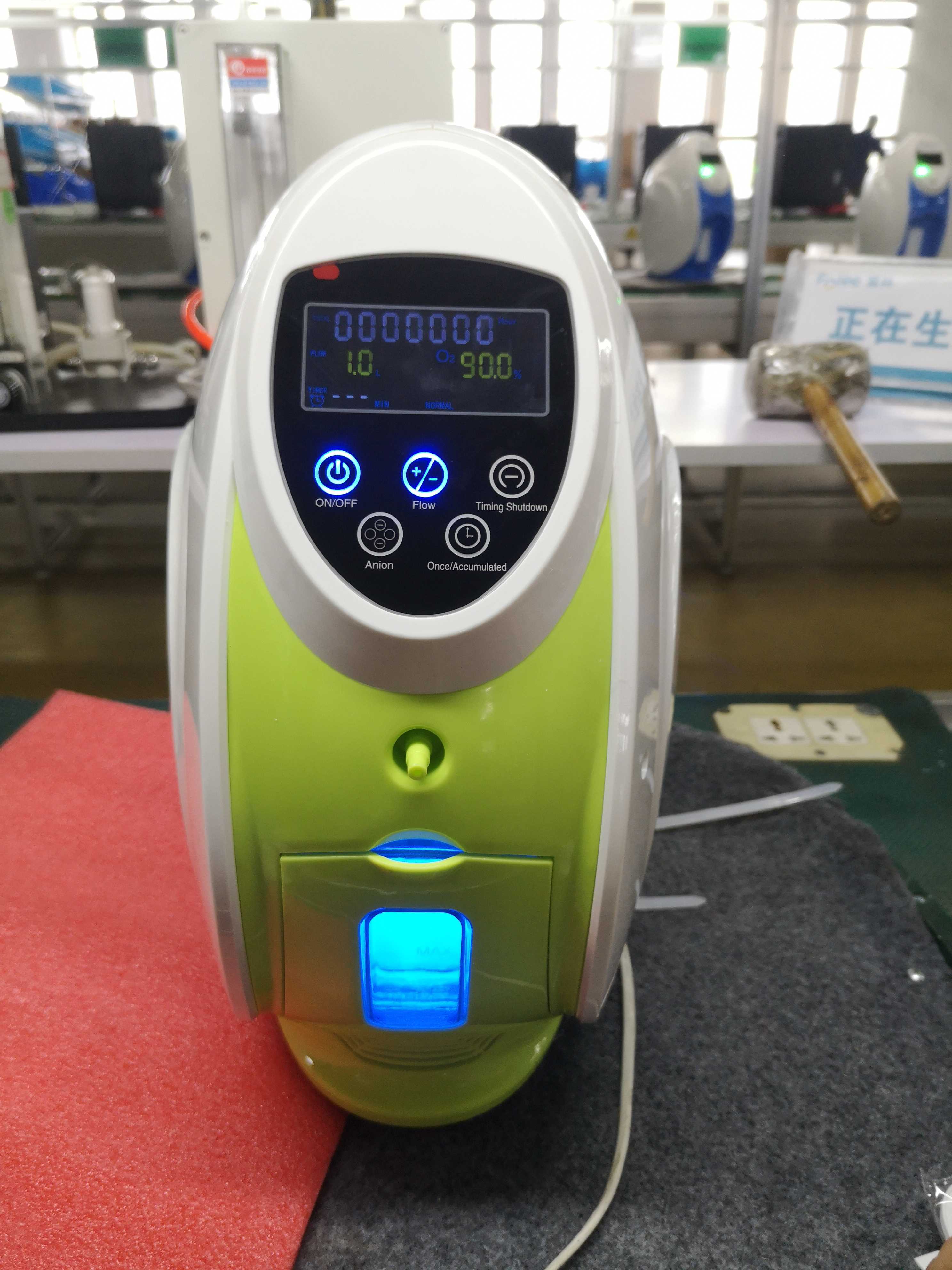

Composed of the main body,flow meter and humidifier.Full plastic casing,safe and reliable.
Remote-control function to operate remotely.
Cumulative time function to show total working time time by display.
Single timer function for real-time control of a single oxygen inhalationtime.Timed shutdown function for easy use.
Function of releasing anion.
Heat protector equipped in the compressor.
Composed of the main body,flow meter and humidifier.Full plastic casing,safe and reliable.
Remote-control function to operate remotely.
Cumulative time function to show total working time time by display.
Single timer function for real-time control of a single oxygen inhalationtime.Timed shutdown function for easy use.
Function of releasing anion.
Heat protector equipped in the compressor.
1.Power supply: AC220V±22V/110V±11V,50Hz/60Hz±1Hz
2.Input power:≤200VA
3.Oxygen flow: 1L/min ~ 5L/min
4.Oxygen concentration:30%~90%(when the oxygen flow is 1L/min, oxygen concentration is ≥ 90%)
5.Noise: ≤60dB(A)
6.Shape size: 33.5×21.5× 37.5(cm)
7.N.W.:6.5kg
8.Altitude: the oxygen concentration will not be reduced when it is from sea level to 1828m, but theoxygen concentration will be less than 90% when the sea level is from 1828 to 4000m
9.Safety system:
▲Shutdown due to current overload or loose connections;
Shutdown due to high temperature of compressor;
10.Shortest working time: not less than 30minutes
11.Electrical classification:Class ll equipment, type B application part
12.Operation mode: continuous operation
13.Normal working environment
▲Ambient temperature range: 5 ℃~40°℃;Relative humidity range:≤80%;
▲Atmospheric pressure range:860hPa~ 1060hPa.
Notice: When the storage and transportation temperature is below 5°℃, the oxygen concentrator shallbe placed in normal working temperature for more than 4 hours before operation.
14.Oxygen outlet temperature:≤ 46℃ 15.Storage and transportation environment:
The oxygen concentrator shall be stored indoors where is dry, ventilating without corrosive gases, theambient temperature range is -5 C~+40 °C and relative humidity range is 35% to 85%.
During transportation, prevent the oxygen concentrator from direct sunlight,rain, moisture or fiercecollision. Do not transport with poisonous, dangerous or corrosive materials.
1.Power supply: AC220V±22V/110V±11V,50Hz/60Hz±1Hz
2.Input power:≤200VA
3.Oxygen flow: 1L/min ~ 5L/min
4.Oxygen concentration:30%~90%(when the oxygen flow is 1L/min, oxygen concentration is ≥ 90%)
5.Noise: ≤60dB(A)
6.Shape size: 33.5×21.5× 37.5(cm)
7.N.W.:6.5kg
8.Altitude: the oxygen concentration will not be reduced when it is from sea level to 1828m, but theoxygen concentration will be less than 90% when the sea level is from 1828 to 4000m
9.Safety system:
▲Shutdown due to current overload or loose connections;
Shutdown due to high temperature of compressor;
10.Shortest working time: not less than 30minutes
11.Electrical classification:Class ll equipment, type B application part
12.Operation mode: continuous operation
13.Normal working environment
▲Ambient temperature range: 5 ℃~40°℃;Relative humidity range:≤80%;
▲Atmospheric pressure range:860hPa~ 1060hPa.
Notice: When the storage and transportation temperature is below 5°℃, the oxygen concentrator shallbe placed in normal working temperature for more than 4 hours before operation.
14.Oxygen outlet temperature:≤ 46℃ 15.Storage and transportation environment:
The oxygen concentrator shall be stored indoors where is dry, ventilating without corrosive gases, theambient temperature range is -5 C~+40 °C and relative humidity range is 35% to 85%.
During transportation, prevent the oxygen concentrator from direct sunlight,rain, moisture or fiercecollision. Do not transport with poisonous, dangerous or corrosive materials.
1.oxygen concentrator 1 piece
2.disposable nasal oxygen tube 2 pieces
3.air filter 6 pieces
4.sealing ring of humidifier 2 pieces
5.fuse 1 piece
6.remote control 1 piece
7.power cord 1 piece
8.0peration Instruction 1 piece
1.oxygen concentrator 1 piece
2.disposable nasal oxygen tube 2 pieces
3.air filter 6 pieces
4.sealing ring of humidifier 2 pieces
5.fuse 1 piece
6.remote control 1 piece
7.power cord 1 piece
8.0peration Instruction 1 piece
