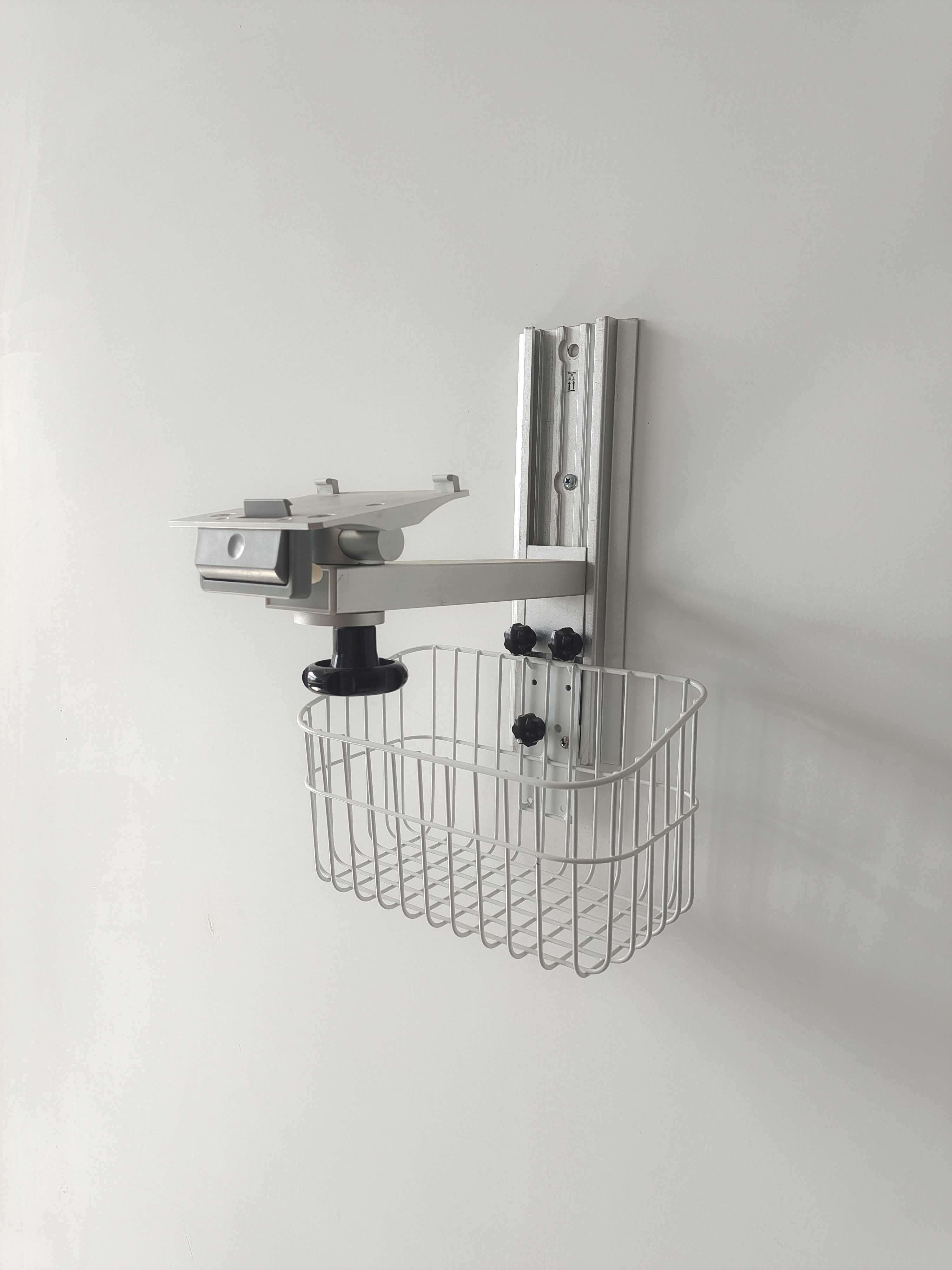

1、Wall mounted chute (aluminum alloy)
a.Size: 330 × 100mm。
b.Installation method: 4 expansion screws, M8*60.
2、Support body (aluminum alloy)
a. Support: 280mm long.
b.Bearing capacity: > 30kg.
c. Upper board: it is matched according to the monitoring model,
d.Angle adjustment: rotate 360 ° left and right, and the screen cannot be adjusted up and down.
e. Support height: sliding adjustment up and down > 300mm.
3、Accessory basket: it can be installed above or below the monitor, with a size of 150 *160* 280mm.
4、Packing: carton.
5、Weight: 3.2kg.
