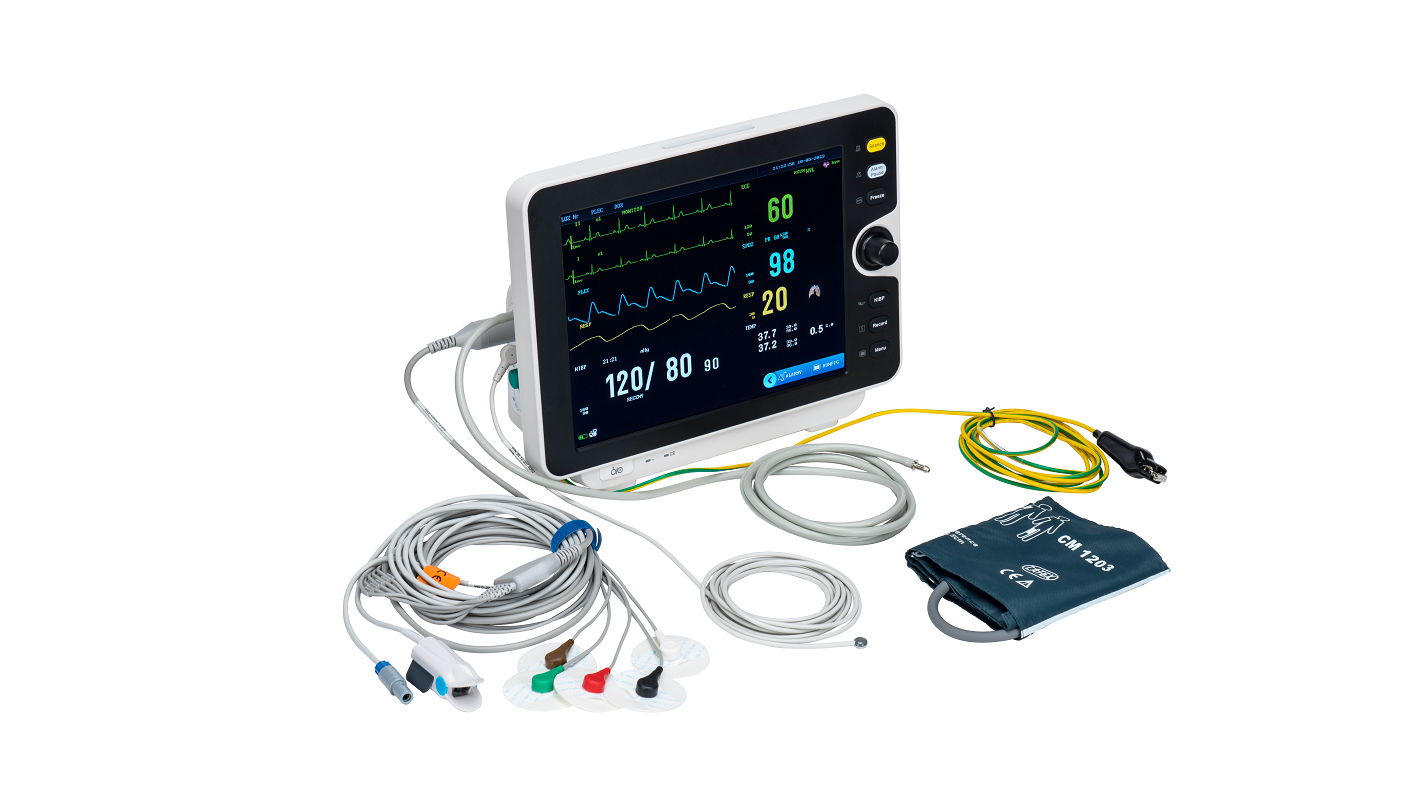

| Model | AD-12 |
| Application Range | Adult/Pediatric/Neonatal/Medicin e/Surgery/
Operating Room/ICU/CCU |
| Display | 12.1* real color TFT screen |
| working environment conditions Temperature | Working temperature0-40ºC
Working humidity≤85% |
| Power supply voltage | AC 100~240V AC |
| power frequency | 50/60Hz, maximum input power 70VA |
| Built-in lithium battery | d.c11.1V not |
| Product Size | 262*336*84mm |
| product weight | 2.72kg |
| Gain | X0.25,x0.5, x1,X2,Auto |
| Waveform speed | 12.5mm/s,25mm/s,50mm/s |
| Diagnosticmode | 0.05-130Hz Monitoring mode:0.5-40Hz Operation mode:1~20Hz |
| Common Mode Rejection Ratio | Diagnosticmode:>90dB
Monitoring mode:>100dB
Operation mode:>100dB |
| Electrode polarization voltage | ±300mV Input impedan ce≥5M |
| DC biasvoltage | ±300mV |
| Calibration signal | 1mV (peak-to-pea k), accuracy±5% |
| ST segment detection measurement: Measurement range | -2.0mV-+2.0mV |
| Measuring Range and Precision Range | Adult Systolic blood pressure40~270mmHg
Diastolic blood pressure 10~215mmHg
Mean blood pressure 20~235mmHg
Static pressure range 0~300mmHg
Static pressure precision ±3mmHg |
| Pressure precision | Max. average error: ±5mmHgi
Max stand ard devaton: 8mmHg |
| Spo2 | Measuringrange0~100%
Resolution 1%
The accuncyis within the range of 70% to 100%, and the measurement error should be ±2%;
In therange of 0% to 69%, the measurement error is undefined |
| Pulse Rate | Measuringrange 30~300bpm
Resolution 1bpm
Accuracy±3bpm
Updatetime ls |
| Standard accessories | NIBP cuff&tube
ECG cable & electrodes
Sp02 sensor
TEMP probe
Lithium-ion battery
Power cable
Operator's manual |
| Optional accessories | End-tidal CO2 (optional)
Recorder (optional)
Dual IBP Nellcor (optional) |
