Electric Bed GEB-23-1
Home » Products » Maternal & Neonate Support » Delivery Table » Electric Bed GEB-23-1

Product Category

loading

Share to:
sharethis sharing button

Electric Bed GEB-23-1

Availability:
Quantity:

Size: L2050/1450*W980* H680-900mm (with mattress )

Electrical delivery bed , 3 sections on surface, four functions: back rest function, up and

down function, trendelenburg and reverse trendelenburg, without battery without CPR

function , with IV pole

Functions: Four functions controlled by three electric motors

1.Back rest angle: 0-80°, controlled by electric motor.

2.Up and down function: height adjustment from 680-900mm, controlled by electric motor

3.Trendelenburg 0-10° (土 1°) ,and reverse trendelenburg 0--10° (土1°) , controlled by one electric motor.

4. Flexible leg part which is controlled by manual


1.Main material of this bed is epoxy coated steel with ABS head/foot boards easy to

remove for emergency

2.Removable Head and foot board, easy to operate.

3.Removable remote control

4. Detachable foot section

5.8cm &20cmthickness mattress with PU cover and zippers at each section, easy to clean

6.Mobile on four 125mm diameter swivel casters with individual brake system(foot operated).

7.ABS side rails on both side of this bed, easy and fast to operate (optional side rails&color : wooden)

8.Integrated fluid basin

9.With pink foam leg support (optional : wrapped leg support)

10.Safe working load 200kg


Click to Play

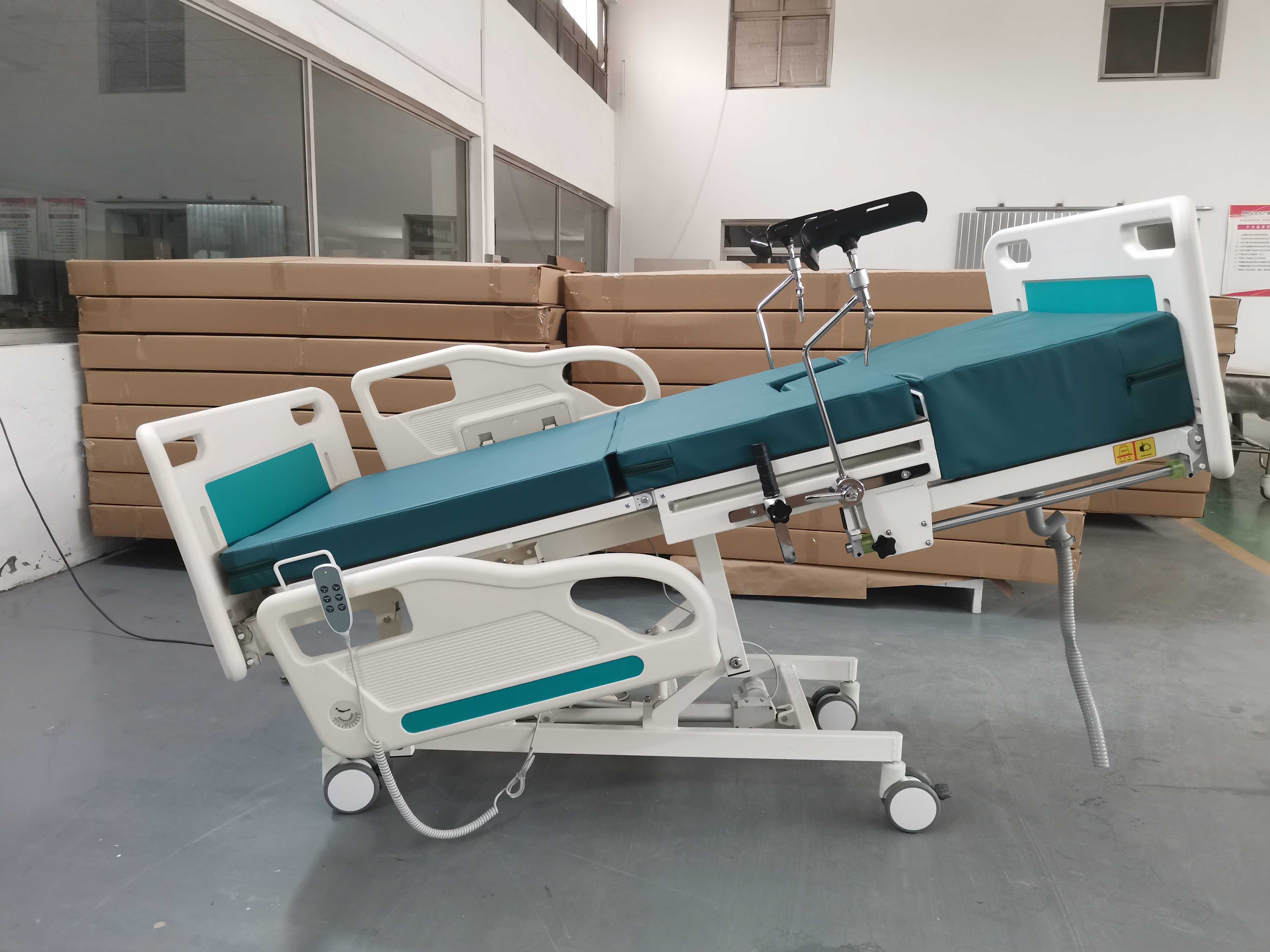

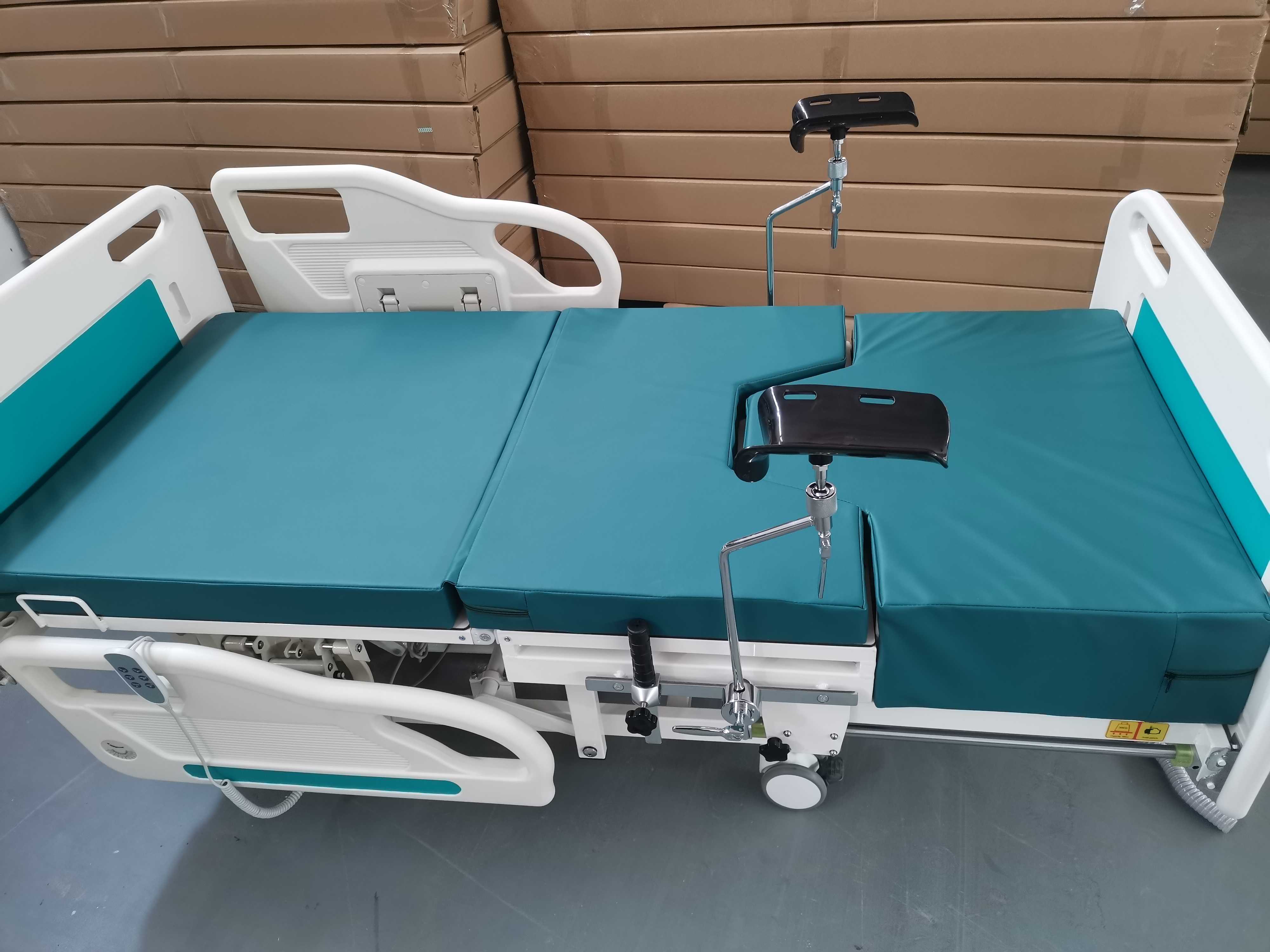

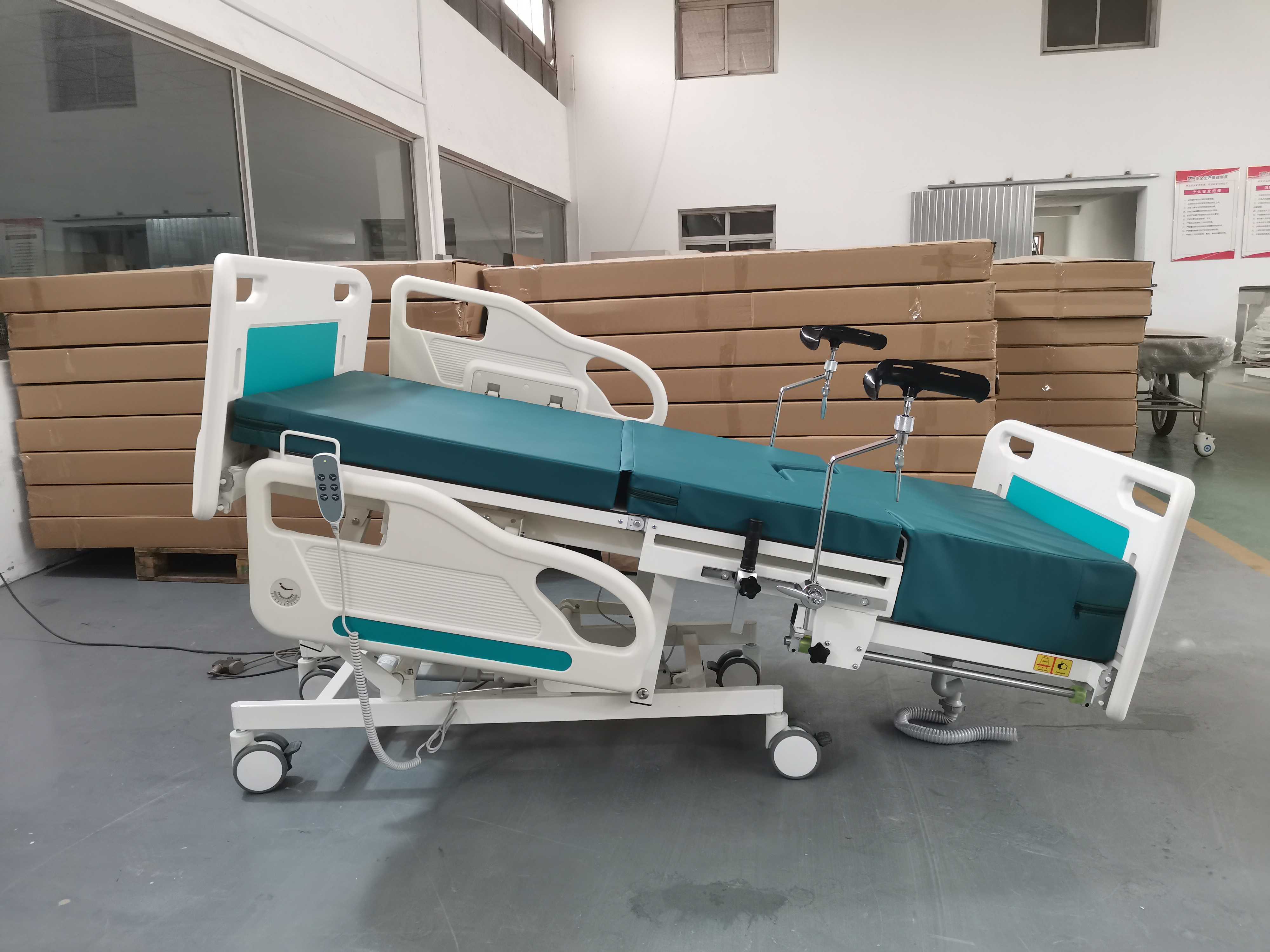

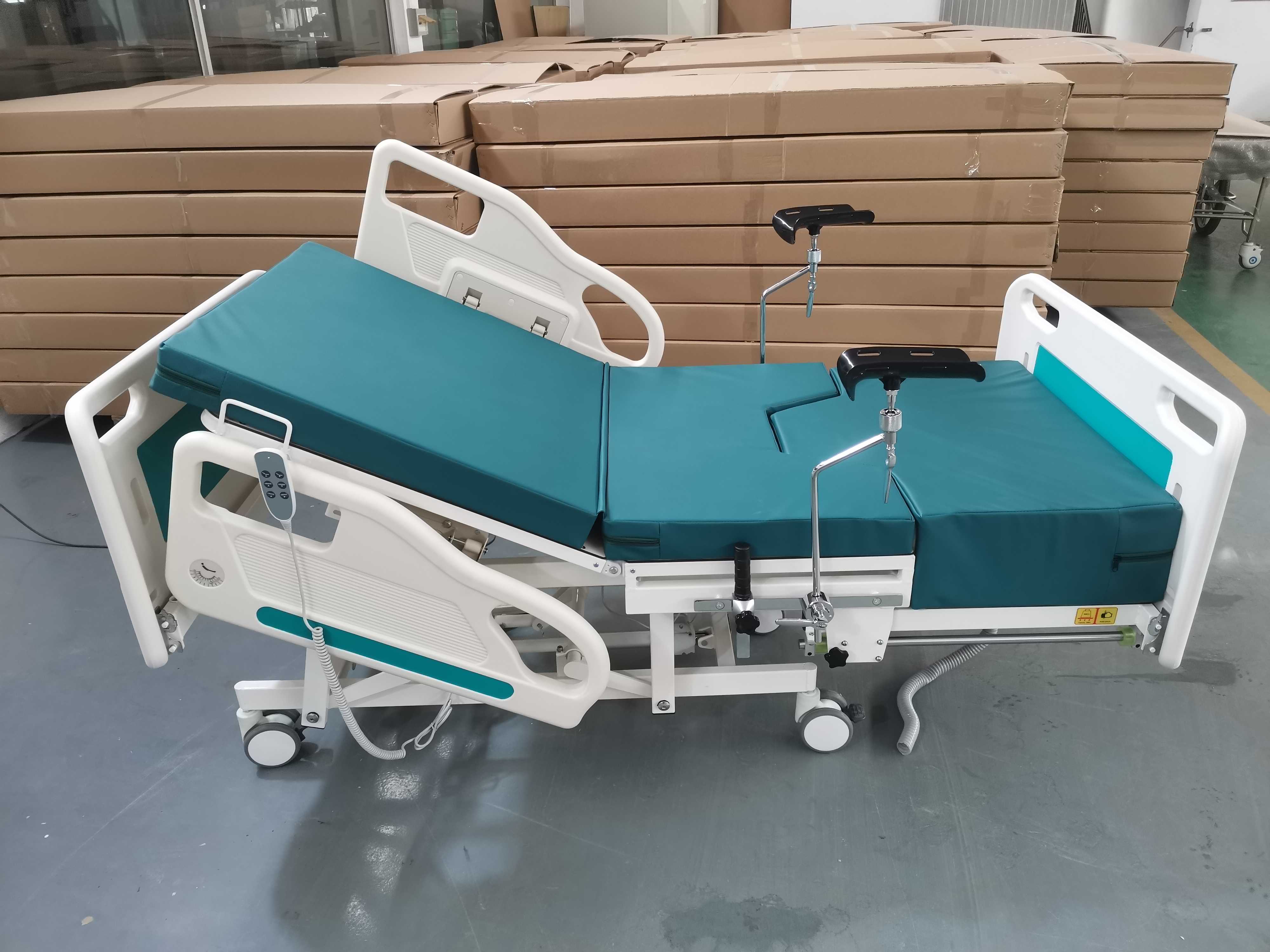

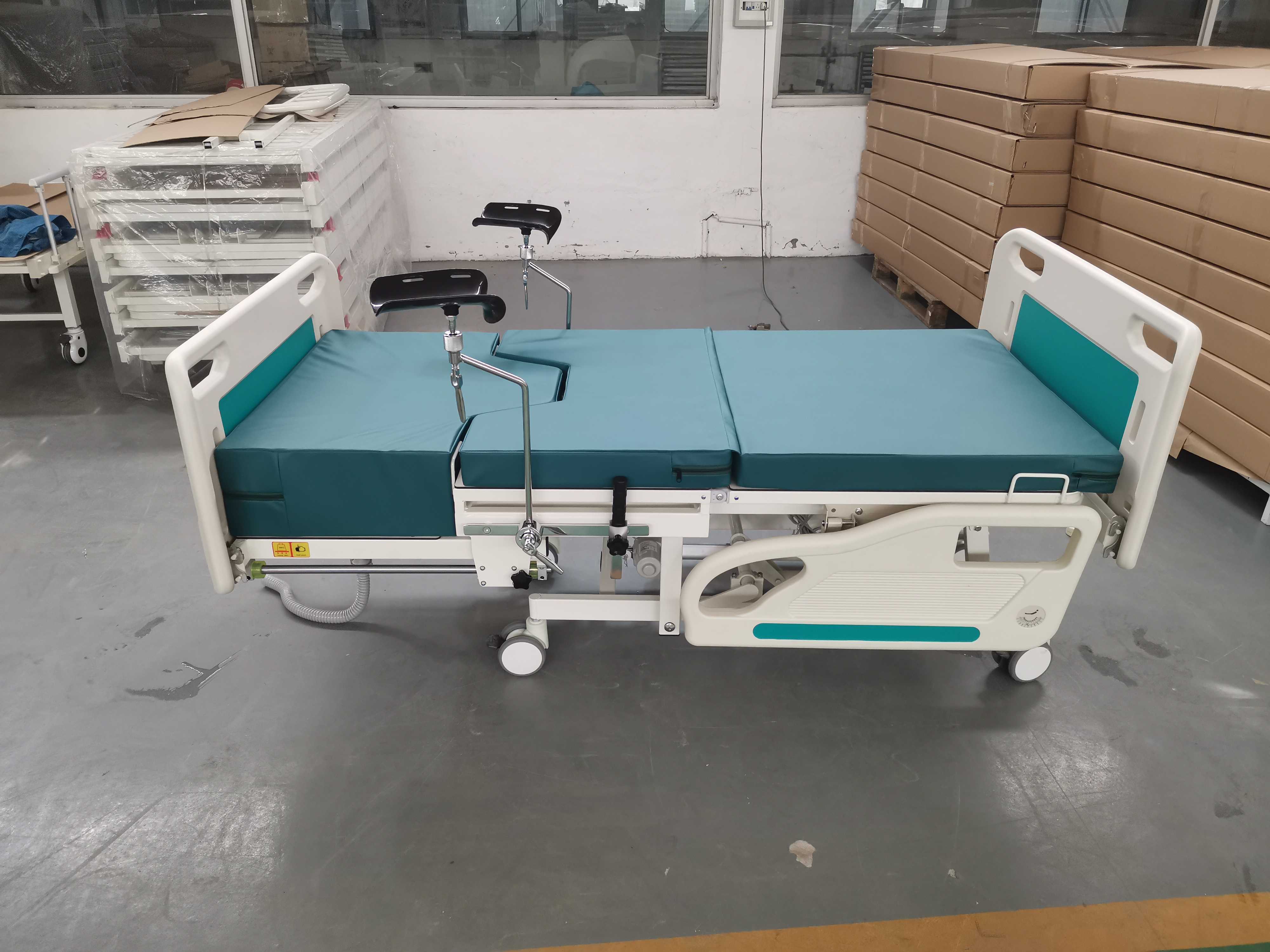

GEB-23-1 (4)GEB-23-1 (5)GEB-23-1 (6)GEB-23-1 (7)GEB-23-1 (12)
