Technical Specifications:
Item | Specification |
|
Xray Tube Assembly | Focus: small focus 0.6mm; large focus 1.2mm |
|
Anode heat capacity: 150KHU |
|
The voltage: 40-150KV |
|
Rotary Anode Speed: 2700rpm |
|
X-ray high-frequency high-voltage generator | Power Output 32KW |
|
Tube Voltage 40-150KV |
|
Tube Current 30-320mA(10-400mAs optional) |
|
Power Voltage: 220V, 50HZ |
|
Collimator | LED Light Source |
|
Power: 24VAC/VDC |
|
Power Capacity: 20W |
|
Maximum View-field: 48*48cm(@100SID/FFD) |
|
Illuminance:>160LUX |
|

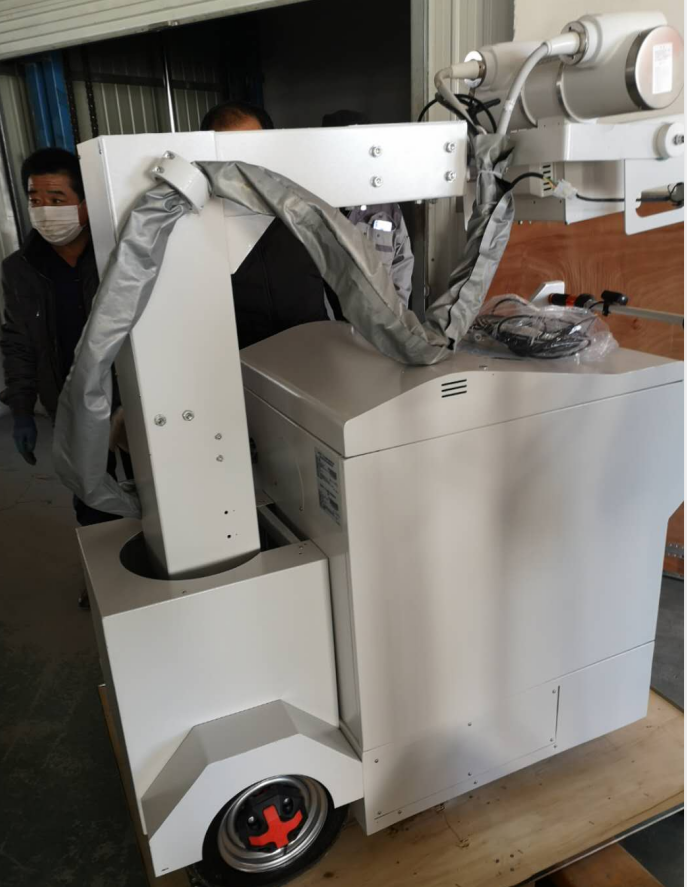

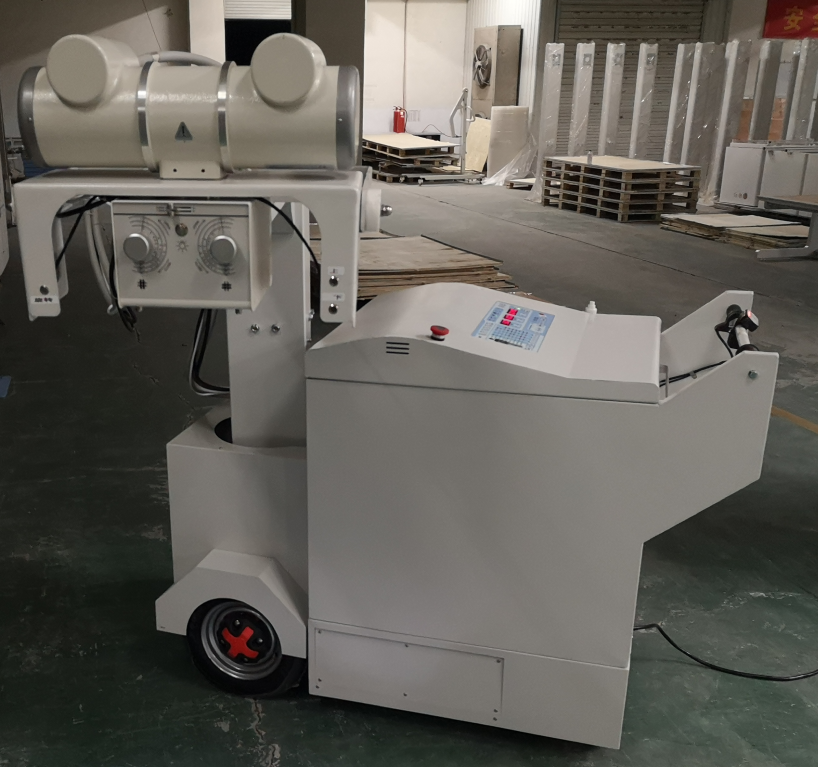

Electric Driven Moving Mechanical System | X-ray tube head Vertical Elevating Range:700-1800mm |
|
Xrau tube head Horizontal extension range: 400-700mm |
|
Column rotation: 0°--270° |
|
Xray tube rotation: ±90° |
|
Flat Panel Detector | Detector Technology | Amorphous Silicon |
Scintillator | CsI |
Active Area | 427×427m2 |
Pixel Matrix | 3072×3072 |
Pixel Pitch | 139μm |
Spatial Resolution | 3.6lp/mm |
AD Conversion | 16bit |
Battery Autonomy(h) | 5 |
WIFI | 2.4GAND 5G,IEEE802.11 a/b/g/n/ac |
Trigger Mode | AED/Software |
Full Image Time | TYP.5 |
Dimensions | 460×460×15mm |
Weight | 4.6kgs |
Static loading | 150kg uniformly |
Ingress protection | IPX1 |
Operating temperature(℃） | 5 to 35
|
Storage&transport temperature with package(℃） | -20 to 55 |
Operating humidity(% RH) | 10 TO 90(Non-condensing)
|
Storage & tramsport humidity with package(% RH) | 5 to 95(non-condensing) |
Image acquisition workstation system | software |
|

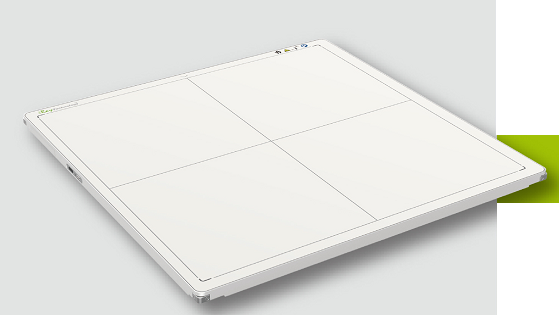

Flat Panel Detector
Mars 1717V wireless Flat Panel Detector is a smart 17×17 inch wireless, cassette-sized FPD for radiographic imaging. It Features reliable AED, dependable wireless performance,and a long battery lift. The Mars 1717V supports a fast work flow,and is the optimal choice for both retrofit and new DR system solutions.
Wireless cassettle detector per ISO 4090,fits in bucky,and a 139μm pixel pitch with 16 bit ADC for more image details, and a stable isync+ AED.
It is Dual band(2.4 and 5GHz) wirelss support with easy sharing,long battery life and smart workflow,direct deposition Csl for better image quality with lower dose
Image acquisition workstation system
High Integration of High Voltage generator software and image acquisition software. Set all generator parameters through image Acquisition working Station
Image Processing Function: Image width, position adjustment, Gray Scale Inversion, Roaming Amplification and Magnification, rotation,explanatory note, all types measurement, cutting, balancing, wave flitering, data information management.
Image output:Support different rules and format image, Support image-text report system
Clinical And User DR Image Show
Mars 1717V wireless Flat Panel Detector is a smart 17×17 inch wireless, cassette-sized FPD for radiographic imaging. It Features reliable AED, dependable wireless performance,and a long battery lift. The Mars 1717V supports a fast work flow,and is the optimal choice for both retrofit and new DR system solutions.
